At Smart Home Solutions, we know that the foundation of any high-performance smart home or commercial AV system is the wiring. What many consider a minor detail—cable management—actually plays an outsized role in reliability, maintenance costs, and future expandability. In this in-depth case study, we’ll walk you through a recent network-closet upgrade, complete with before & after photos, and show how investing a little extra time up front can pay dividends for years to come.
The Client’s Initial Challenge
When we first arrived, the network closet was working—but barely. Cables were tangled and unlabeled, draping across equipment and blocking airflow. Troubleshooting meant fishing through a knotted mess, and future expansion looked daunting.

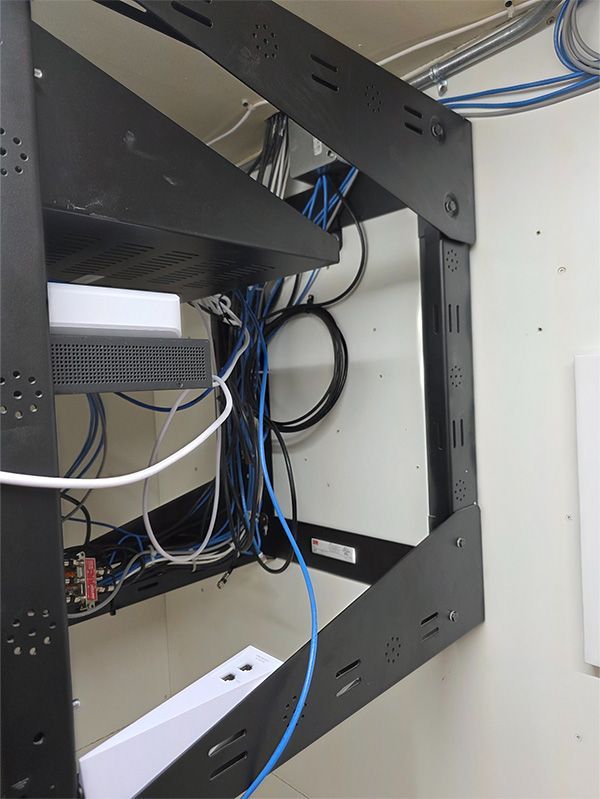

Before: Tangled network, coax, and control wiring with no strain relief.

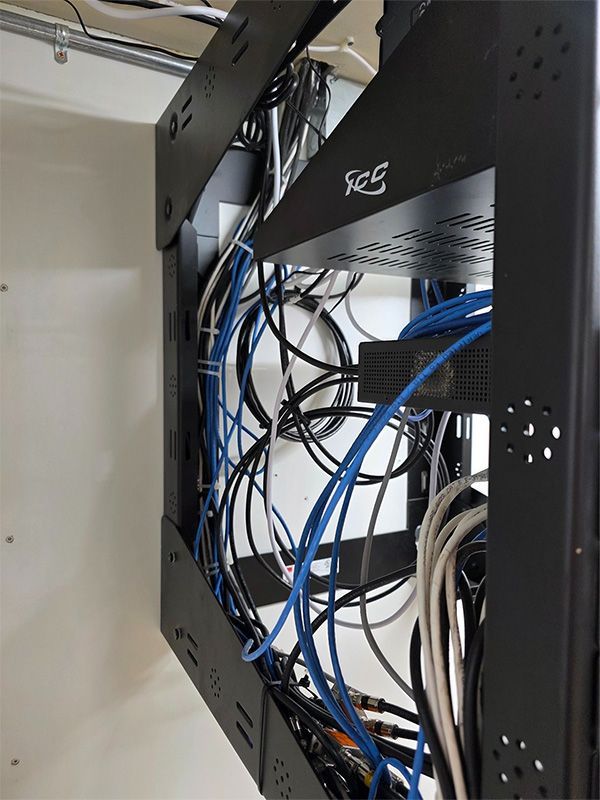

Before: Cables draped over the top shelf, obstructing airflow.

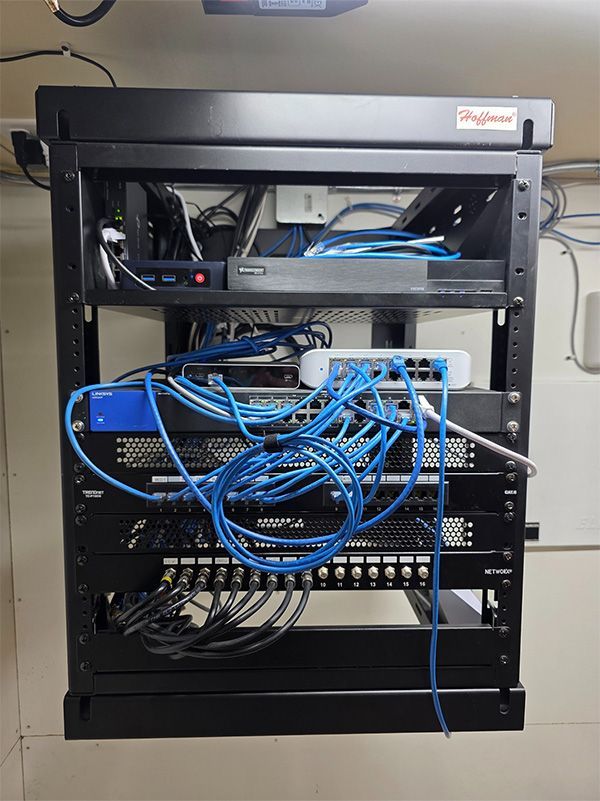

Before: No separation between data, video, and power cables, increasing crosstalk risk.
Our Structured Cable Management Process
Assessment & Planning
We traced every cable’s path, reviewed device capacities, and reserved extra port space for future growth.
Labeling & Documentation
Each run was labeled at both ends (e.g., “LR–Patch–02”), and the client’s network diagram was updated.
Rack Preparation
Equipment was arranged to optimize weight distribution and airflow: heavy items like the DVR at the bottom, patch panels and switches above.
Bundling & Velcro Straps
Like cable types—Cat-6 in blue, coax in black, control lines in white—were grouped and secured with reusable Velcro wraps.
Service Loops & Strain Relief
Controlled loops above panels provided slack for maintenance without stressing terminations, and cables were tied off to the rack frame.
Final Testing & Handoff
After re-terminating every connection, we ran throughput and PoE-budget tests, then walked the client through the updated documentation.
Before & After Showcase
After:

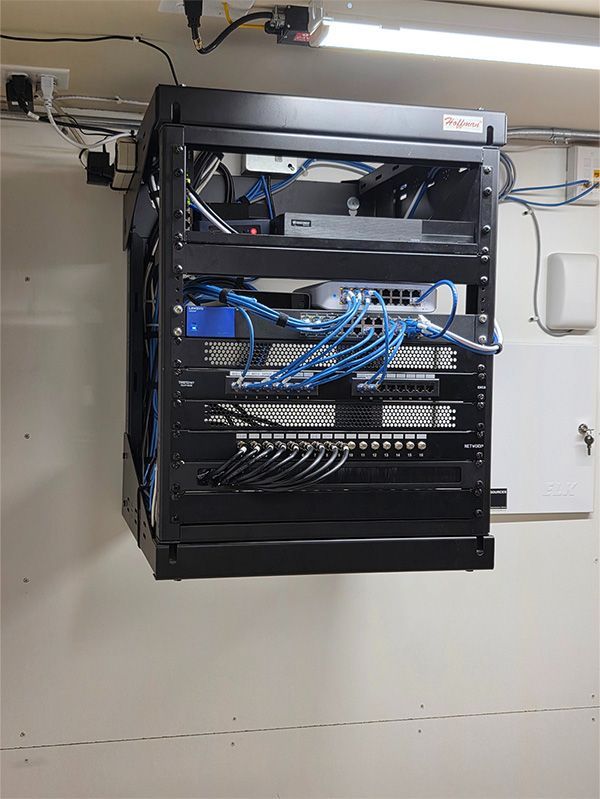

Bundled cables, type separation, and open patch-panel ports.

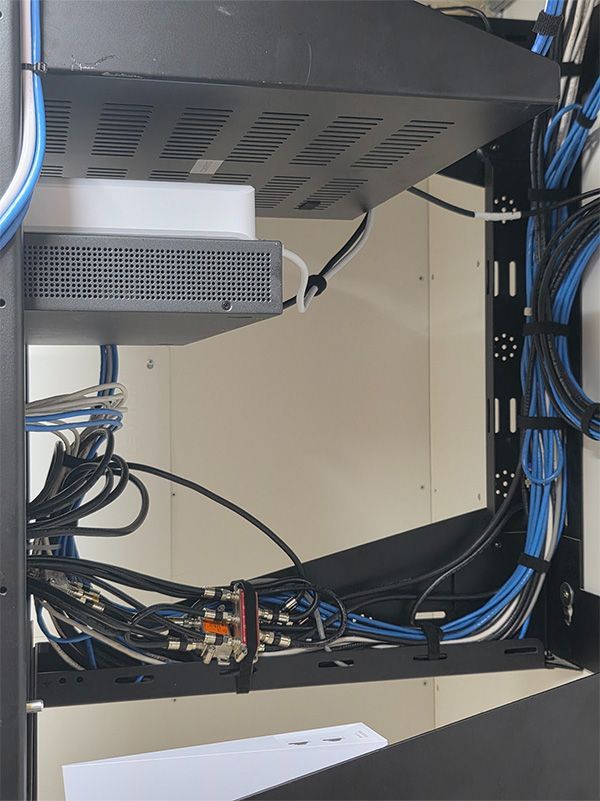

Top shelf cleared of draping cables—improved access and cooling airflow.
After:

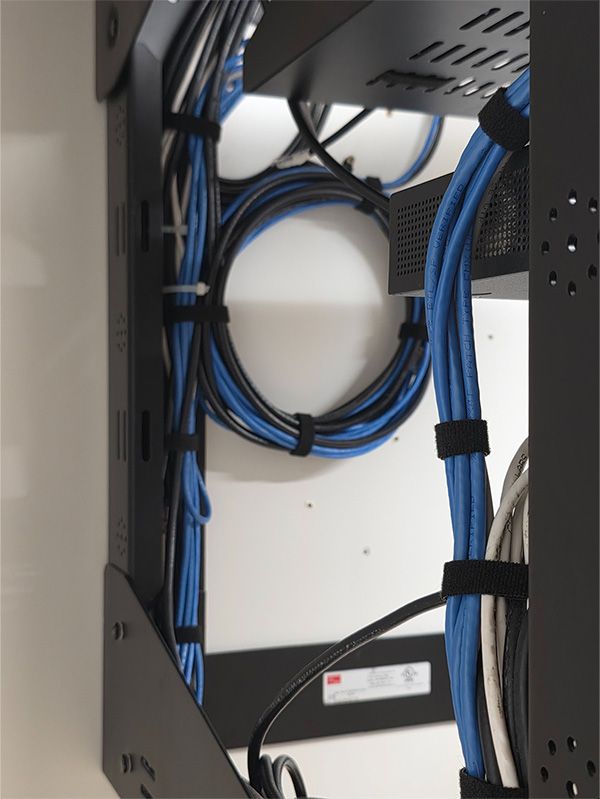

Uniform service loops secured at multiple tie-off points, ready for expansion.
Key Benefits to the Client
Faster Troubleshooting & Uptime
Clear cable paths and consistent labels turn hours of tracing into minutes of work.
Lower Maintenance Costs
Proper loops and strain relief greatly reduce cable fatigue and termination failures—no more emergency re-terminations.
Improved Equipment Lifespan
Unobstructed airflow around servers, switches, and DVRs prevents overheating and extends the life of critical gear.
Scalable Infrastructure
With ample open ports and documented runs, adding new devices—IP cameras, media servers, smart thermostats—is truly plug-and-play.
Professional Appearance & Confidence
A neatly dressed rack not only functions better but also instills confidence in clients, insurers, and future technicians.
Expense: Emergency Re-terminations
Before:$150 per call × 4 calls/year = $600/year
After:$0 (none needed)
Savings Over 5 Years:$600
Expense: Equipment Replacement (heat damage)
Before:$500/year
After:$100/year
Savings Over 5 Years:$2,000
Expense: Technician Labor (troubleshooting)
Before: 2 calls/year × 3 hr × $250/hr = $1,500/year
After: 1 call/year × 1 hr × $125/hr = $125/year
Savings Over 5 Years:$6,875
Total Estimated Savings: $9,475
Assumes competitor labor rate of $250/hr vs. our $125/hr, and a five-year horizon.
Quality cable management isn’t just cosmetic—it’s a smart investment in your system’s reliability, scalability, and your bottom line. By partnering with Smart Home Solutions, you ensure faster support, fewer failures, and seamless growth for years to come.
